Channel State Information from a Wi-Fi 7 access point

Abstract

Wi-Fi sensing relies on Channel State Information (CSI): one complex channel estimate per subcarrier and antenna path for every received frame. It is usually collected on the client side with a few research network cards and patched drivers. This paper shows that the MT7990 Wi-Fi 7 access-point radio reports CSI for the frames of chosen stations using a patched open-source mt76 driver, and describes how to collect it, what it contains and how reliable it is.

The firmware command has 06 sub-commands, and its filters take effect only when sent before the start command. Each event carries one antenna path of one frame with at most 256 subcarriers, so 160MHz frames arrive in two segments.

The custom mt76 integration adds a parser, a segment join buffer, a record queue and a multicast stream behind a generic netlink family, plus a command-line tool.

The records are characterised: tone layout and null tones, chain-to-antenna mapping, RSSI in dBm, SNR in dB after removing a +16 offset, a firmware timestamp that is always zero, and a CSI rate of 12-14 frames per second under light traffic.

Against an independent channel estimate from raw baseband samples of the same frames, the CSI magnitude profile correlates at 0.94 (0.46dB RMS difference in the band centre) and the phase profile at 0.90. With a 1s spread-of-amplitude metric, a person walking in the room raised the 5GHz 160MHz score from 0.08dB (still) to a median of 0.39-1.77dB in two runs, with no overlap between still and walking windows.

At 2.4GHz 20MHz the two overlapped; receiver-gain steps, notched records and a flat line-of-sight channel account for it. Capture costs 1-4% of the AP’s CPU and no measurable throughput.

Contents

1. Introduction
2. Background
3. Test setup and method
4. The firmware interface
5. Linux integration
6. What a record contains
7. Data quality
8. Motion sensing
9. Cost
10. Limitations
11. Future work
12. Artifacts and reproducibility
13. Credits

• Appendix A: record schema
• Appendix B: command and event reference
• Appendix C: glossary

1. Introduction

A Wi-Fi receiver estimates the radio channel on every OFDM frame in order to equalise the data. That estimate (the CSI), describes how the room shapes the signal, and it changes when people move, breathe or open a door. Some research has used it for presence detection, activity and gesture recognition and localisation. Almost all of that work ran on a handful of client cards with modified firmware, not on the access point that is already in every home.

The MT7990 firmware contains a CSI engine, and the command that drives it is present in the production image, but the upstream Linux driver did not have the code to use it.

Contributions.

• The command and event format, read from the Wi-Fi MCU firmware and confirmed on the device, including the ordering rule that decides whether any data arrives at all (section 4).
• A Linux integration in mt76 with a generic netlink interface, a queue and a live stream (section 5).
• A measured description of the records: layout, units, rates, and which fields cannot be trusted (section 6).
• An accuracy check of the firmware’s CSI against an independent estimate from raw baseband samples of the same frames (section 7).
• A motion-sensing experiment on two bands with a simple, reproducible metric, including the band where it fails (section 8).
• The cost to traffic and CPU (section 9).

2. Background

CSI. For each OFDM subcarrier k and each pair of transmit stream s and receive antenna r, the receiver estimates the complex channel H_sr(k) = I + jQ. |H| is the amplitude response and arg H the phase response. Frequency-selective fading shows as notches where multipath components cancel.

Subcarrier grids. Legacy, HT and VHT frames use a 312.5kHz subcarrier spacing, 64 tones per 20MHz. HE and EHT use 78.125kHz, 256 per 20MHz. The MT7990 reports HE/EHT CSI at every 4th subcarrier, so the tone counts match the legacy grid: 64, 128, 256 and 512 tones for 20, 40, 80 and 160MHz.

Phase. Each frame’s phase carries a slope across tones (the receiver’s timing offset for that frame) and a constant (carrier phase). Both are random per frame. Removing a straight-line fit across the used tones (“sanitising”) leaves the channel’s own phase shape.

Antenna paths. A 2-stream station received on 3 antennas gives 6 paths per frame. Each is reported separately as a “chain”.

3. Test setup and method

Figure 1: the setup.

• DUT. A test unit with the Airoha AN7583 SoC (4 × Cortex-A53) and the MT7990 radio, OpenWrt, Linux 6.18, production WM firmware from linux-firmware, custom mt76 driver. The 2.4GHz radio uses 2 receive antennas and the 5GHz radio 3.
• Stations. Two 2×2 laptop clients (one per band) for the CSI captures and the motion runs; a USB client with pinnable rates (station A) for the cross-check of section 7.
• Traffic. CSI needs the station to transmit: pings from the AP at 2.4GHz (the replies carry CSI), a steady 1Mbit/s upload at 5GHz.
• Evidence markers. [F] firmware fuzzing; [M] measurement on the DUT; [A] offline analysis of recorded data.

4. The firmware interface

4.1 Commands [F][M]

UNI command 0x4a, sent to the WM MCU, carries a 4-byte header {band, reserved[3]} and one TLV (le16 tag, le16 len, len including the 4-byte TLV header):

Ordering rule [M]. Frame-type and transmitter filters take effect only when they reach the firmware before START. START alone was accepted (status 0) but produced no events, and filters sent after START produced none either. STOP, then FRAME_TYPE 34, then the transmitter filter, then START gave 68 events from 20 pings. The driver therefore applies a combined request in a fixed order: filters, chain selection, active mode, start.

Chain selection [M]. The meaning of the CHAIN_NUMBER values was not documented and was decoded on the DUT from 07 settings under a 5GHz upload:

Hazard [F]. The firmware’s TLV loop has no minimum-length check, so a TLV with len = 0 would make the WM loop forever. This was not tried: the driver builds every TLV itself and never sends one. No CSI command caused a firmware timeout during this work.

Active mode [F][M]. The firmware walks the WCID bitmap (WCIDs 0-31 only) and sends each station a 24-byte header-only frame every interval / count ms. It ignores the two type bytes and refuses an empty bitmap or an interval shorter than 1ms per station. On the DUT, active mode produced no poll-driven records with any setting tried (section 10).

4.2 Events [F][M]

Each event (UNI event 0x4a, unsolicited) carries {band, pad[3]}, then one UNI TLV whose value is a list of {le32 tag, le32 len, body} elements in any order:

The firmware sent tags 0-12 and 17-23, never 13-16. One event is one chain of one PPDU, so a frame from a 2-stream station received on 3 antennas produces 6 events. Frames wider than 80MHz are split into 256-tone segments, sent back to back for one chain:

Figure 2: segment join for 160MHz frames.

Second record kind [F]. The firmware also builds records with 13 tones (width code 6, one TX and one RX, SNR 0), packed into the usual 64-entry I/Q arrays after sign-extending 14-bit samples. They could not be triggered on the DUT: 1Mbit/s DSSS frames gave no CSI at all, and 6Mbit/s OFDM frames gave 1000 normal 64-tone records.

5. Linux integration

Figure 3: data path.

• Parser. Order-independent TLV parsing with bounds checks. A malformed event increments parse_err. Records are copied out of the event in softirq context (atomic allocation).
• Join buffer. One per band, sized for 1024 tones (320MHz). A segment that does not continue the current chain resets it and increments seg_err.
• Queue and stream. Without a listener, records wait in a per-band queue (default 1024, up to 16384; a 160MHz record is about 2.1 KB). When a process listens on the multicast group records, records bypass the queue and are streamed as they arrive. Counters (events, pushed, streamed, dropped, seg_err, parse_err) are readable at any time. STOP, a firmware restart or enable 0 end the capture and drop the queue.
• Generic netlink family mt76-csi, described by a YNL specification from which the kernel policy and UAPI header are generated. Commands: set (filters, chain selection, active mode, queue length, enable), get (state and counters), read (dump of queued records); notification record-ntf.
• Tool. csictl <if> <band> set | start | stop | status | read | watch | stream prints one JSON object per record.

6. What a record contains

6.1 Layout [M]

i and q are in FFT order: index 0 is DC, the first half the positive subcarriers, the second half the negative ones (fftshift for a frequency axis). Null tones read 0 and must be masked before taking logarithms or fitting phase. In a 160MHz record the zero tones are the band edges (-256..-254 and 254..255), the DC of each 80MHz half (±128) and the centre (-2..2).

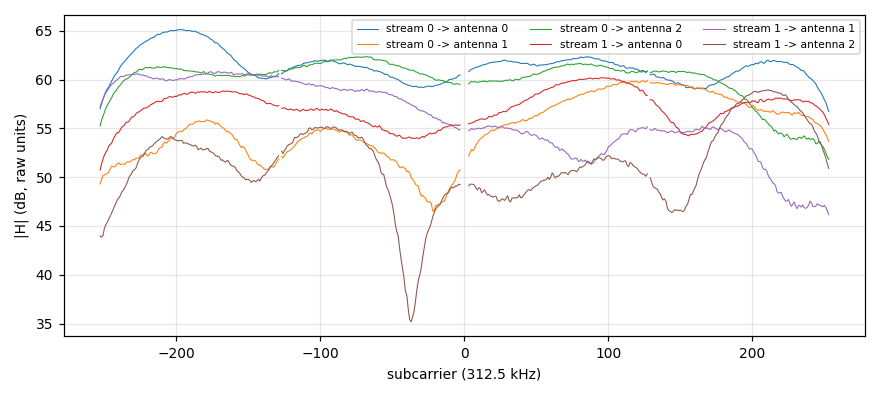

Figure 4: one 160MHz PPDU from the 5GHz station, all 6 paths (2 streams × 3 antennas). Frequency-selective fading differs per path; stream 1 to antenna 2 has a 25dB notch.

Chain k of a PPDU is the pair (trx_idx >> 16 stream, trx_idx & 0xffff antenna). Series must be kept per (chain, stream count, PHY mode): when a station switches to a single-stream legacy frame, “chain 0” means something else. In the cross-check run (section 7.3), legacy 24Mbit/s frames from station A all arrived as a single record (1 stream, antenna 0).

6.2 Units [M]

The CSI SNR runs about 5dB below the L-LTF SNR computed from raw samples. The two estimators differ (the firmware’s is per chain, after its own processing), and the offset is consistent across the run.

6.3 How often [M][A]

The firmware does not report every frame:

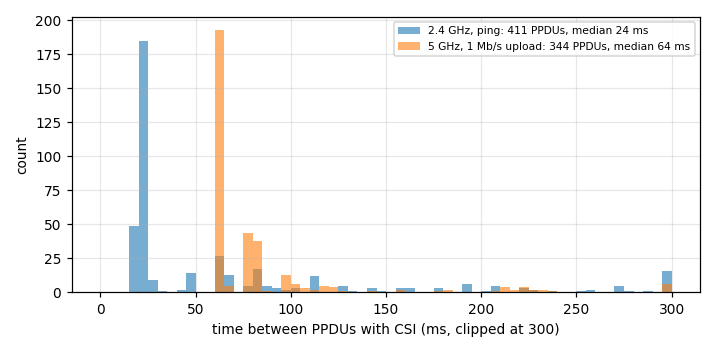

Figure 5: time between consecutive frames with CSI in the two sample captures.

7. Data quality

7.1 Amplitude and phase over time [A]

With the station still, the 5GHz 160MHz channel is stable. The per-tone amplitude standard deviation over 30s (after removing each record’s mean level) is 0.064dB (median over tones), and the sanitised phase standard deviation is 0.007 rad. At 2.4GHz the figures are 0.23dB and 0.003 rad; the amplitude is less stable there because of receiver-gain steps (7.2).

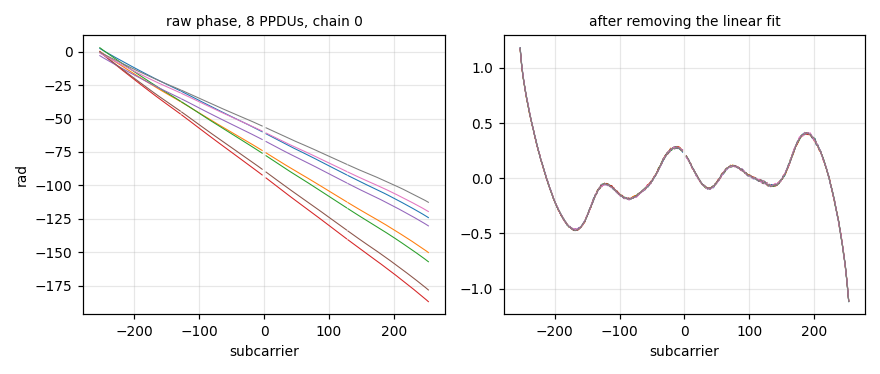

Figure 6: phase of eight 5GHz records before and after removing the linear fit.

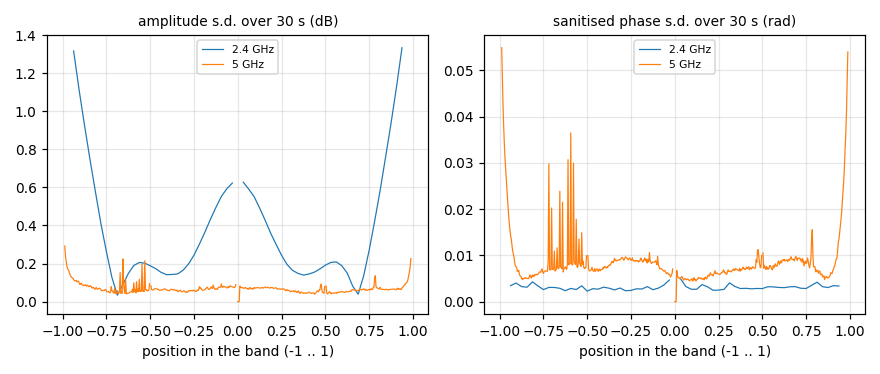

Figure 7: per-tone standard deviation over a 30s still capture, amplitude and sanitised phase.

7.2 Gain steps and notched records [A]

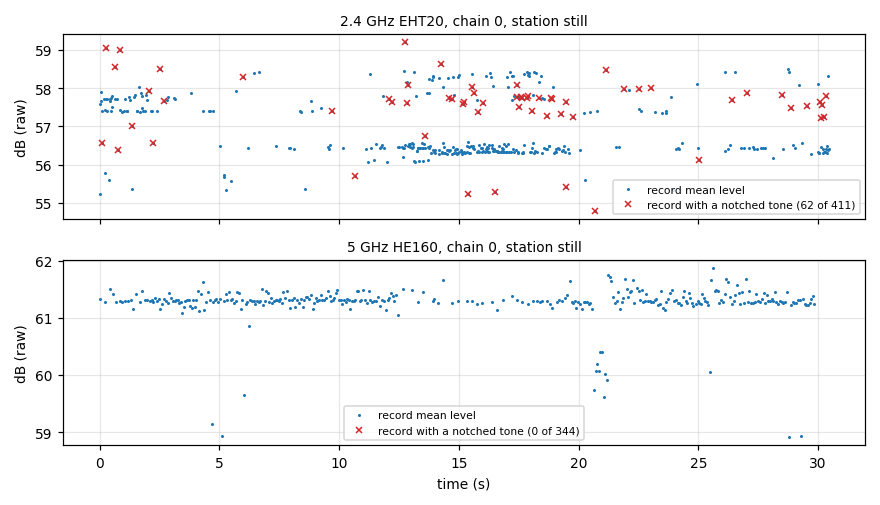

Figure 8: mean level of each record (chain 0) over 30s with the station still.

At 2.4GHz the mean level per record falls into discrete clusters about 1dB apart, and it changed by more than 1dB between consecutive records 148 times in 411 records. The receiver’s gain steps show through because the CSI is not normalised to a fixed gain. 62 of the 411 records (15%) contain a notched tone: a single tone more than 10dB below the record’s median that is absent from the neighbouring records. At 5GHz there were 14 steps in 344 records and no notched records.

Before comparing records, normalise each record’s level (subtract its mean in dB) and drop records with notched tones. The motion metric of section 8 does both.

7.3 Accuracy: CSI against an independent estimate [M]

To check the firmware’s CSI, CSI and raw baseband samples of the same frames were recorded at the same time. The raw samples came from the chip’s I/Q capture engine (described in the companion ICAP whitepaper). Station A sent legacy 24Mbit/s frames under a ping flood for 40 s; the AP recorded 2454 CSI records (antenna 0) and 400 captures of RX path 0. The legacy long training field (L-LTF) of 63 of station A’s frames in those captures gave an independent channel estimate per subcarrier: the average of the two LTF symbols, after the capture’s sample-timing repair.

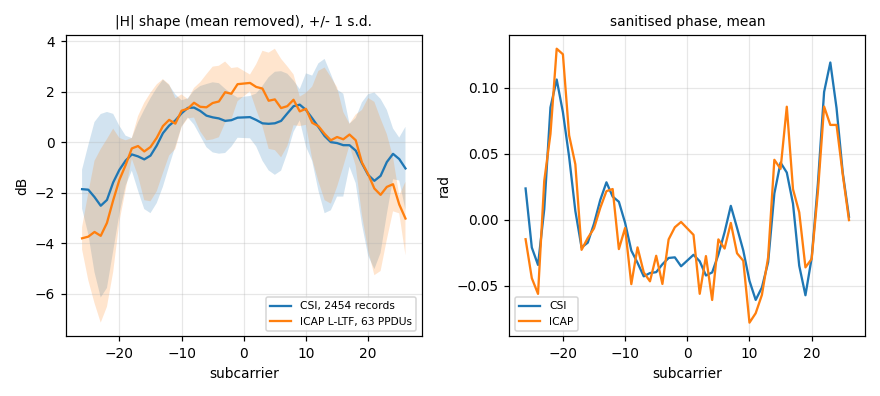

Figure 9: mean channel shape per subcarrier from CSI (2454 records) and from the L-LTF of raw captures (63 frames), same station, antenna and period. Left: magnitude with mean removed, ± 1 s.d.; right: sanitised phase.

The shapes agree across the band. The main difference is at the band edges, where the raw samples roll off 2dB more, consistent with the firmware estimating the channel after compensating the receive filter’s passband while the capture tap sits after the filter. CSI antenna 0 and capture path 0 are the same receive chain. The per-frame spread is similar in both, so the CSI adds no visible noise of its own at this SNR.

7.4 Cyclic-shift ripple [A]

A 2-stream station sends the legacy preamble with a cyclic shift on its second antenna. In the received sum this appears as a periodic ripple across tones. At 2.4GHz the 2×2 laptop shows notches every 16 tones (5MHz), a 200 ns shift, in raw-sample channel estimates. Paths of the same stream share the ripple; its phase differs between streams. Keep series per stream when this matters.

8. Motion sensing

8.1 Metric [A]

A first metric, one minus the correlation of consecutive records, was dropped: gain steps and notched records moved it as much as motion did. The metric used here removes both effects first.

For each record: amplitude in dB over the used tones, minus its mean (removing gain steps); records with a notched tone are dropped. For each antenna path and 1s window: the standard deviation over time of each tone, averaged over tones. The score is the average over paths, in dB: 0 for a frozen channel, larger when the multipath changes. It is implemented as csiplot.py motion in the tool package.

8.2 Experiment [M]

Twice per band: 30s with the room still (station at a fixed place), then 30s with a person walking around the room. Run 2 crossed the line of sight more often.

Computed from the run-2 samples (5GHz keeps every 4th frame): 5GHz still 0.078 / 0.096 / 0.122dB, walking 1.622 / 2.028 / 2.073dB (minimum 0.457dB); 2.4GHz unchanged.

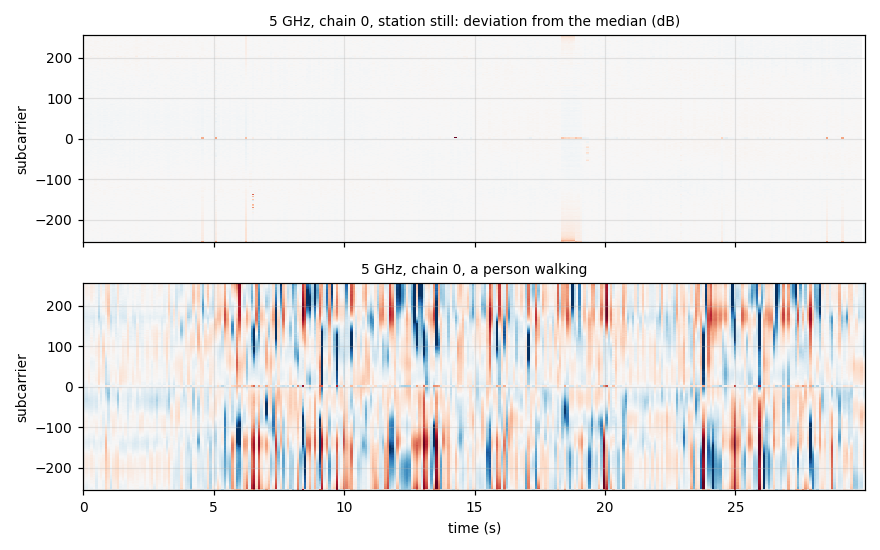

Figure 10: 5GHz chain 0, deviation of each tone from its median over 30 s. Top: still. Bottom: a person walking; crossings of the line of sight show as band-wide stripes.

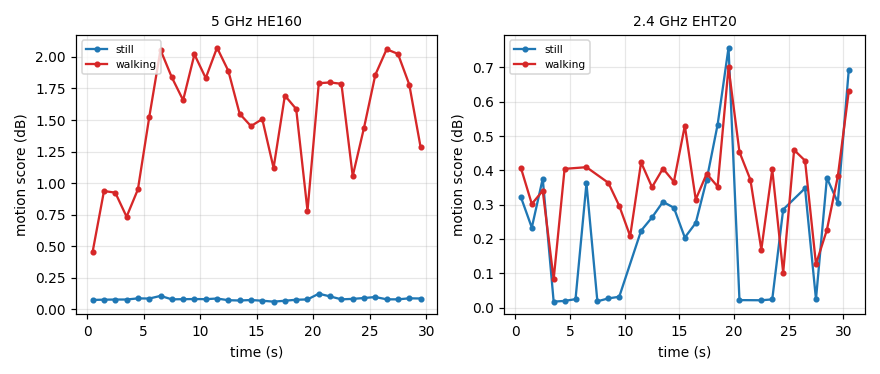

Figure 11: motion score per 1s window, run 2 samples.

8.3 Separation, and why 2.4GHz fails [M][A]

At 5GHz 160MHz, every walking window scored above the highest still window in both runs: 5× the still median in run 1 and 21× in run 2. A threshold at about 2.5× the median of a still calibration capture (0.2dB here) separates them. Run 1’s lowest walking window (0.13dB) sat just above the still maximum, so short pauses while walking read as still.

A still capture can itself contain motion. A first attempt at run 2 read 0.24-0.52dB for its first 7s while someone settled, then 0.09dB.

At 2.4GHz 20MHz the still and walking scores overlap in both runs. The contributing factors, all measured above:

• 64 tones instead of 512, and 4 paths instead of 6;
• a nearly flat channel: the station was close and in line of sight;
• 1dB receiver-gain steps and 15% notched records (7.2), which raise the still floor to 0.26-0.31dB;
• a lower and more irregular CSI rate from pings (median gap 24ms, 90th percentile 192ms).

9. Cost [M]

Download traffic is unaffected: CSI is measured on frames the station sends. Upload and latency were measured with the capture off and on, interleaved, with the same stations (Mbit/s; ping to the station during the upload):

No difference stands out from the run-to-run spread of the stations’ own uplink, which varies by a factor of three at 5GHz with the capture off. The DUT’s CPU stays at 1-4%. Formatting 512-tone records as JSON on the DUT itself (csictl stream running locally) adds 17-22%, so long captures should stream to another host or be narrowed with the chain selection of section 4.1.

10. Limitations

• One room, one station position per band, two runs. The motion results show that the metric separates still and walking on this bench at 5GHz. They give no detection rates for other rooms, distances or activities, and the threshold must be calibrated per room.
• Humans in the loop. The walking runs were done by a person on the bench; their paths are not recorded precisely.
• Accuracy check at high SNR only. The CSI-against-raw comparison (7.3) was at about 40dB SNR, with legacy frames and one antenna. Differences at low SNR, for HE/EHT frames or on other antennas are untested. The reference estimate also shares the same RF front end, so errors common to both are invisible.
• Sampling of frames. The firmware decides which frames carry CSI (25-40 per second under heavy traffic). The selection rule is unknown and could bias time series.
• Undocumented feature. This data was probed and read without documentation, its behaviour or format can change in the future.
• Need traffic flowing. An idle station did not produce records.

11. Future work

• Active mode. Find out why the AP’s polls produce no records: whether the poll frame gets no response the firmware samples, or CSI on responses is filtered out. Can we somehow wake the station?
• Firmware timestamp. A per-frame firmware time would allow sub-millisecond alignment across chains and with the AP’s own transmissions.
• Multi-link (MLD) stations. Map CSI to the link and the MLD station.
• Host-side decimation and per-station rate control, to bound the event load.
• CSI as a diagnostic metrics. CSI already served to verify the AP’s power-saving antenna switch-off: with it active, a 2.4GHz frame’s records dropped from 4 to 2 chains and RX antenna 1 disappeared. Per-antenna health checks follow directly.
• Combine with raw baseband capture. Raw captures give the L-LTF and, for HE frames, data-aided estimates. CSI gives every antenna and a steady rate.

12. Artifacts and reproducibility

The four motion-run captures (2.4GHz and 5GHz, still and walking, run 2, transmitter addresses replaced, 5GHz every 4th frame) ship with the tool package as utils/csictl/samples/*.json.xz. The script reads them from there.

To regenerate:

$ python3 scripts/make_figures.py <feed-checkout> <cross-check-raw-dir> .

13. Credits

• Anthropic/Claude
• F.
• M.

Appendix A: record schema

One JSON object per record (csictl read / stream); the netlink attributes carry the same names:

{"band":0,"ts":0,"rx_time":35484837308673,"ta":"02:00:00:00:00:01","rssi":-34,"snr":40,
 "cbw":0,"dbw":0,"ch_idx":0,"rx_mode":720897,"chain_info":98320,"trx_idx":0,"tr_stream":17,
 "pkt_sn":111,"extra_info":0,"ver":22,"i":[734,540,...],"q":[...]}

Appendix B: command and event reference

Command: UNI 0x4a to the WM MCU; {u8 band, u8 reserved[3]} + one TLV; tags in 4.1. Sequence for one station:

csictl <if> <band> set frame 0 34 peer-add <station> enable 1   # filters, then START
csictl <if> <band> stream > csi.json                            # records as they arrive
csictl <if> <band> status                                       # counters
csictl <if> <band> stop                                         # STOP, queue dropped

Event: UNI 0x4a, unsolicited; {u8 band, u8 pad[3]} + UNI TLV 0 holding {le32 tag, le32 len, body} elements; tags in 4.2.
